KM 25

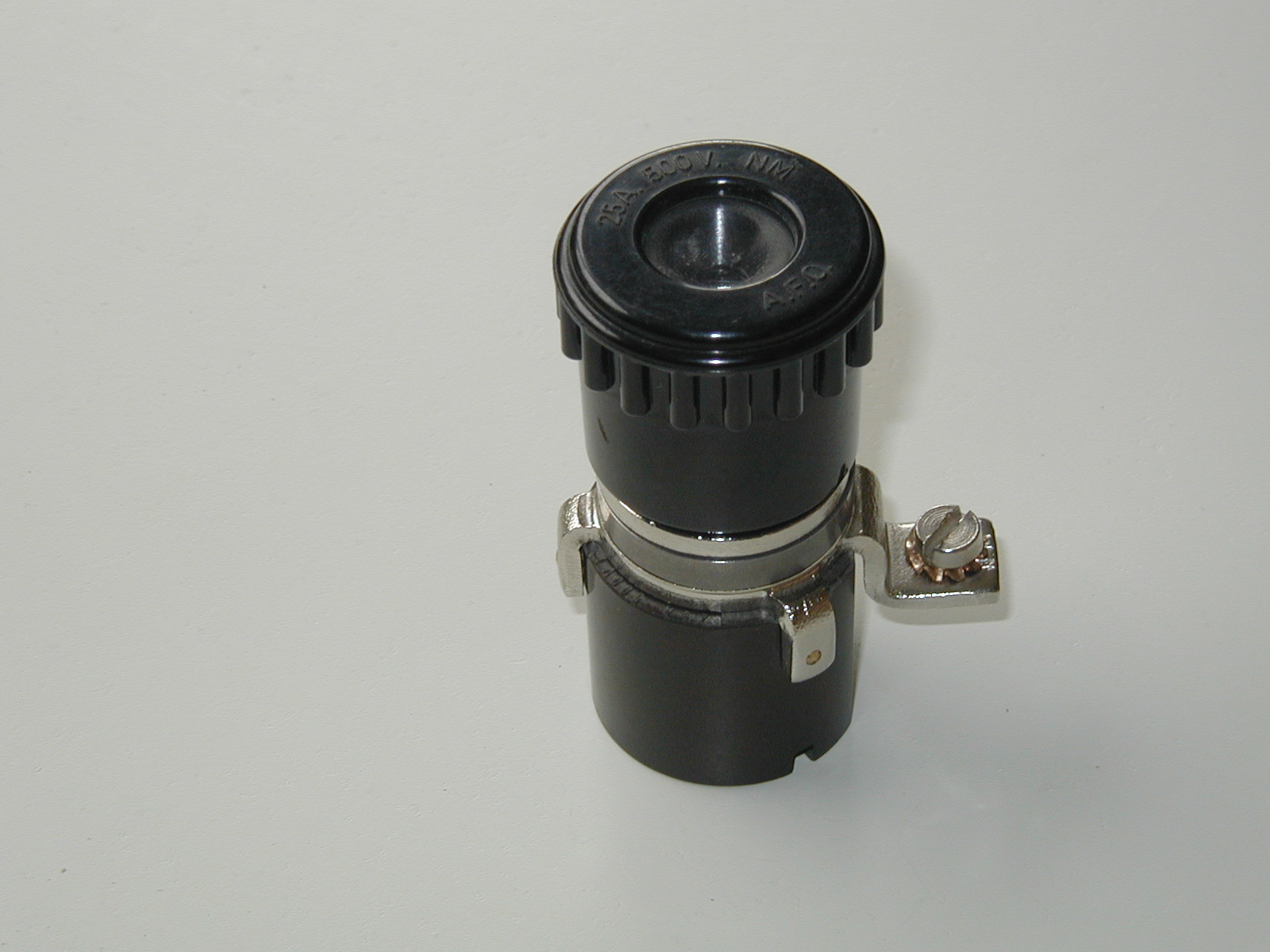

Fuseholders for screw cartridges

type KM 25





 Matlé B.V. produces the approved AFO shock- and vibration-proof materials for use aboard ships and in other vibrating en shocking environments.

  • completely in compliance with Navy specifications
  • non-magnetic
  • shock- and vibration-proof
  • temperature proof and tropicalized insulating material
  • constant contact pressure even at widely varying temperatures
  • busbar-mounting and foot-mounting versions
  • screw heads with ratchet tooth locking and captive window
  • small dimensions ideally suitable for use in compact switchboards and panels
  • ideal for application where mechanicals shocks and vibrations may occur, e.g.

- on board ships

- on vibrating machines

- in explosion-proof boxes



KM25 1







Technical data:

            maximum current          - 250 V                         25 A

            cartridge fuse                - KM 25                        D II

            maximum voltage          - KM 25                        500 V

            ambient temperature     -15 … +70 °C

            storage temperature      -20 … +70 °C



Technical data Dimensions in mm

 KMH63 afm

Type KM25
A 100
B 67.5
C 21
D 37
E M5
F 44
G 31.5
H 32
I 49.5
J 66
K 75
L 42
M 7
N 18.5

Weight

Foot-mounting

175 g
Weight busbar-mounting 115 g

Weight

screwhead

40 g


NATO Stock numbers

holder KM 25 busbar-mounting     5920-17-025-1567

holder KM 25 foot-mounting         5920-17-025-1568

screw  head KM 25                      5920-17-005-0608

MATLÉ Article numbers

holder KM 25 busbar-mounting                 AF141023

holder KM 25 foot-mounting                     AF141024

screw head KM 25                                   AF143004
