GH 84

Fuseholders for screw cartridges

type GH 84





Matlé B.V. produces the approved AFO shock- and vibration-proof materials for use aboard ships and in other vibrating en shocking environments.

  • completely in compliance with Navy specifications
  • non-magnetic
  • shock- and vibration-proof
  • temperature proof and tropicalized insulating material
  • constant contact pressure even at widely varying temperatures
  • small dimensions ideally suitable for use in compact switchboards and panels
  • ideal for application where mechanicals shocks and vibrations may occur, e.g.

- on board ships

- on vibrating machines

- in explosion-proof boxes




GH84 1

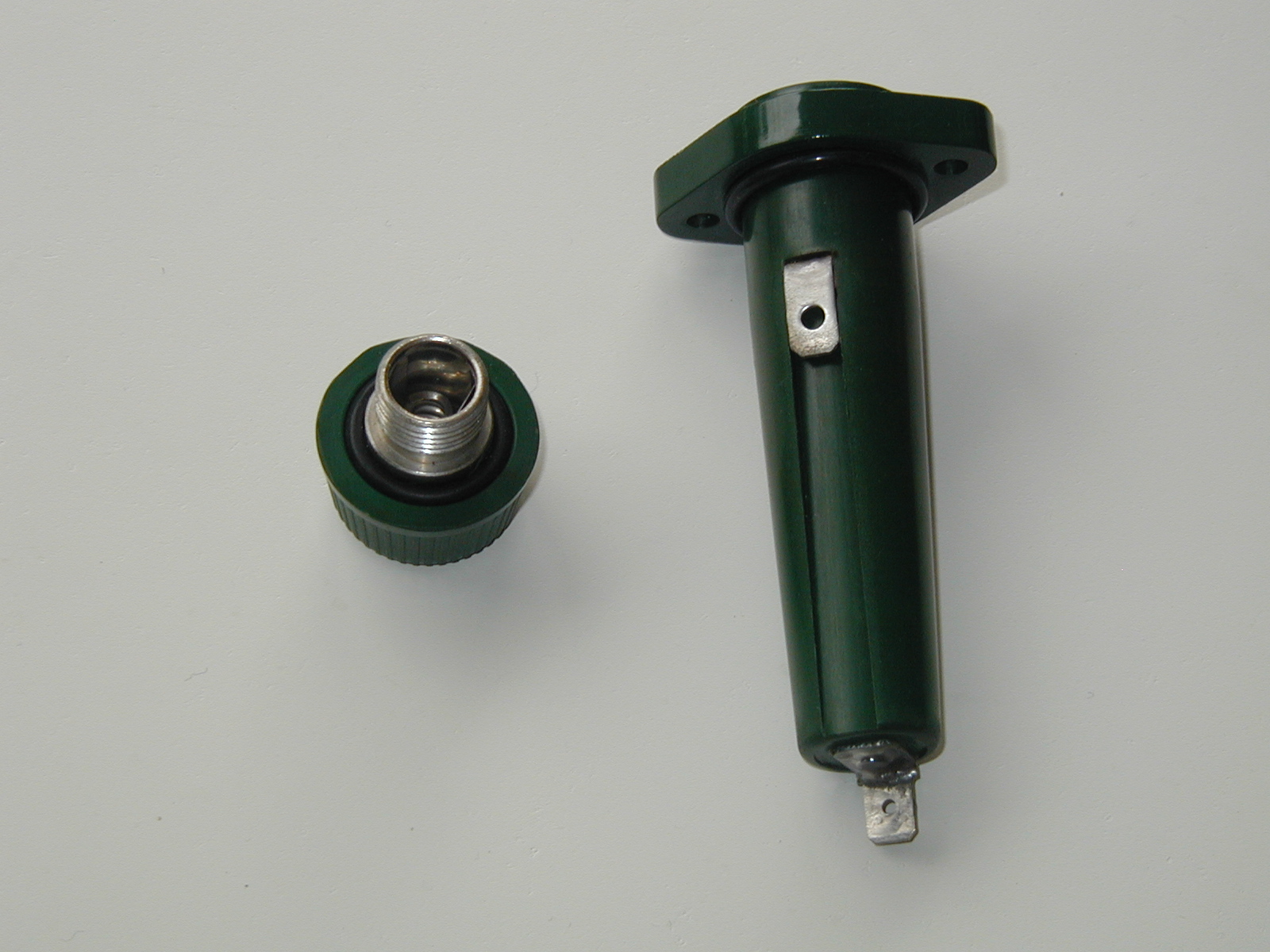

Fuseholder with screwhead type GH 84


Technical data:

            maximum current          - 6.3 A

            cartridge fuse                - 10 x 85 mm

            maximum voltage          - 3000 V

            connections                   - solderable and quick terminal 6.35 mm

            weight                          - 7,5 kg/100

            ambient temperature     -15 … +70 °C

            storage temperature      -20 … +70 °C

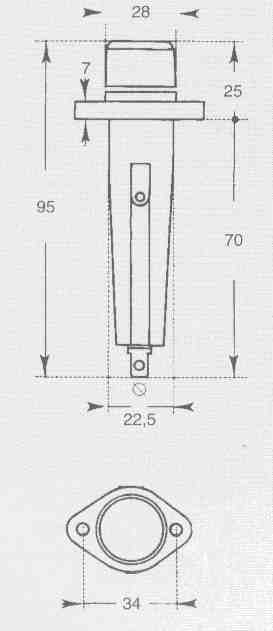

Technical data Dimensions in mm

mounting:                             panel

                                             hole ø 22.5 mm

                                             distortion protection

 GH84 afm

MATLÉ Article numbers

fusehoulder GH 84                                AF116054
